PEM Fuel Cell Stack Testing Bench

Tensor PEM fuel cell test bench can be used for comprehensive test of fuel cell stacks and systems including electrochemistry test, sensitivity test, performance test and durability test.

Specification of PEM Fuel Cell Stack Test Benchs

DUT	Model	Min P/kW	Max P/kW	H2/NLPM	Air/NLPM	Inlet DP/°C	Gas Temp/°C	Coolant/LPM	Current/A	Cell#	Stack Temp/°C	Gas Pressure /kPag	Cell Hardware	Endplate Heating	0V Operation	Cell Reverse	EIS	HFR	Rapid Humid	Dynamic Pressure	Active Cooling	Anode Deadend	Cold Start	Water Balance
PEM Fuel Cell MEA Tester	PM100W	0.005	0.1	2	5	90	100		120	1	90	300	O	Y	O	O	O	O
PEM Fuel Cell Single Cell Tester	PM500W	0.025	0.5	20	40	90	100	2	750	4	90	300	O	O	O	O	O	O		O		O
PEM Fuel Cell Short Stack Tester	PM5 PEM	0.25	5	125	300	90	100	15	1000	20	90	300			O	O	O	O	O	O		O		O
PEM Fuel Cell Short Stack Tester	PM10 PEM	0.6	12	250	750	90	100	30	1000	40	90	300			O	O	O	O	O	O		O		O
PEM Fuel Cell Short Stack tester	PM20 PEM	1	20	500	1500	90	100	60	1000	80	90	300							O	O		O	O	O
PEM Fuel Cell Stack Tester	PM80 PEM	3.75	75	1500	3000	90	100	250	1000	250	90	300							O	O		O
PEM Fuel Cell Stack Tester	PM150 PEM	7.5	150	4000	10000	90	100	450	1000	300	90	300							O	O		O
PEM Fuel Cell Stack Tester	PM200 PEM	10	200	5000	13500	90	95	600	1000	600	90	300							O	O		O
PEM Fuel Cell Stack Tester	PM300 PEM	15	300	8000	20000	90	95	900	1000	900	90	300							O	O		O
PEM Fuel Cell Stack Tester	PM400 PEM	20	400	9600	27000	90	95	1200	1000	1200	90	300							O	O		O
PEM Fuel Cell Stack Tester	HT250 PEM	12.5	250	7000				900	1000		90	300
PEM Fuel Cell Stack Activation Station	EOL200	10	200	4800	13500	90	95	600	1000	600	90	300							O	O

PM100W PEM Fuel Cell MEA Tester

The PM100W fuel cell test station is designed for the development and research of the 100W PEM fuel cell MEA . This station is capable of controlling the flow, pressure, temperature, and humidity of t...

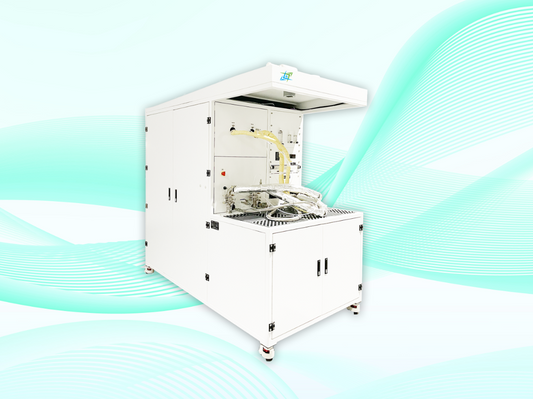

PM500W PEM Fuel Cell Single Cell Tester

This test station precisely controls flow, pressure, temperature, and humidity across a fuel cell stack's anode, cathode, and cooling loops.
PM5 PEM Fuel Cell Short Stack Tester

The PM5 fuel cell test station is designed for the development and research of PEM fuel cell stacks ranging from 0.25 to 5 kW. This station is capable of controlling the flow, pressure, temperature, a...
PM10 PEM Fuel Cell Short Stack Tester

Ideal for PEM fuel cell development, the PM10 test station supports stack performance evaluation across a broad power range (0.6-12 kW).

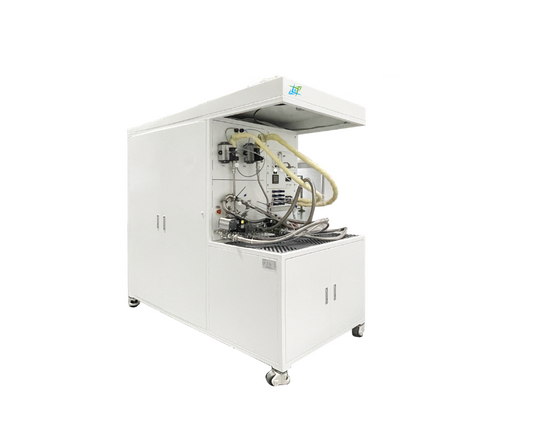

PM20 PEM Fuel Cell Short Stack Tester

Designed for the development and research of PEM fuel cell stacks ranging from 1 to 20 kW.

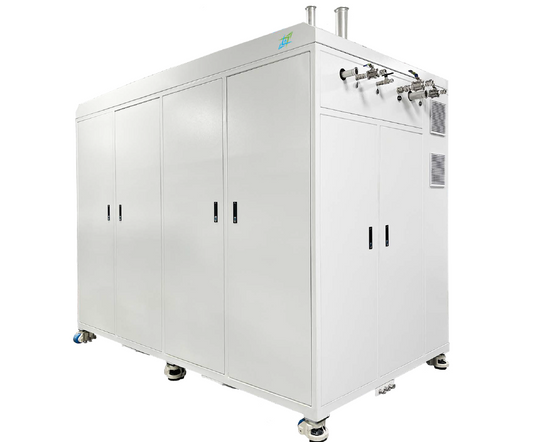

PM80 PEM Fuel Cell Stack Tester

The PM80 fuel cell test station is designed for the development and research of PEM fuel cell stacks ranging from 3.75 to 75 kW. This station is capable of controlling the flow, pressure, temperature,...
PM150 PEM Fuel Cell Stack Tester

The PM150 fuel cell test station is designed for the development and research of PEM fuel cell stacks ranging from 7.5 to 150 kW. This station is capable of controlling the flow, pressure, temperature...

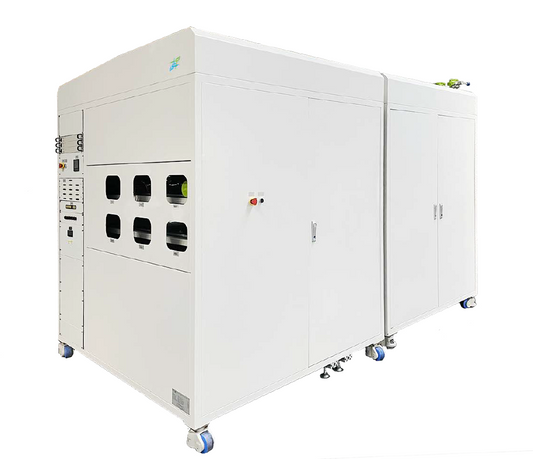

PM200 PEM Fuel Cell Stack Tester

Designed for the development and research of PEM fuel cell stacks ranging from 10 to 200 kW.
PM300 PEM Fuel Cell Stack Tester

Designed for the development and research of PEM fuel cell stacks ranging from 15 to 300 kW.
PM400 PEM Fuel Cell Stack Tester

Designed for the development and research of PEM fuel cell stacks ranging from 20 to 400 kW.
HT250 PEM Fuel Cell System Tester

Ideal for the development and research of 250kW PEM fuel cell system.
EOL200 PEM Fuel Cell Stack Activation Station

he system incorporates Industry 4.0-ready controls with full interoperability to existing MES and SCADA architectures. The parallel stack testing configuration provides a 100% increase in experimental throughput compared to conventional single-stack systems.

Highlights of PEM Fuel Cell Stack Test Benchs

1.H-Fueling Moudle:

Provide fuelinfg and oxide process control(including composition and mass flow ,fueling temperature and humidity)

2.Hydrogen Test:

The Speciaal test software Nova developed for hydrogen energy testing has industry-leading flexibility and informationization, which can support the test strategy developement working condition simulation, test data collection, display, analysis, traceability and enterprise intranet cloud,as well as 24-hour unattended operation of chlorine energy products.

3.Dynamic Response

Power Dynamic

Fuel cell dynamic response simulation moudle,supply fast and reliable condition that can match the application scenario in the traffic field.It includes the dynamic change of anode and cathode reactant supply,stack temperature,react pressure and load.
