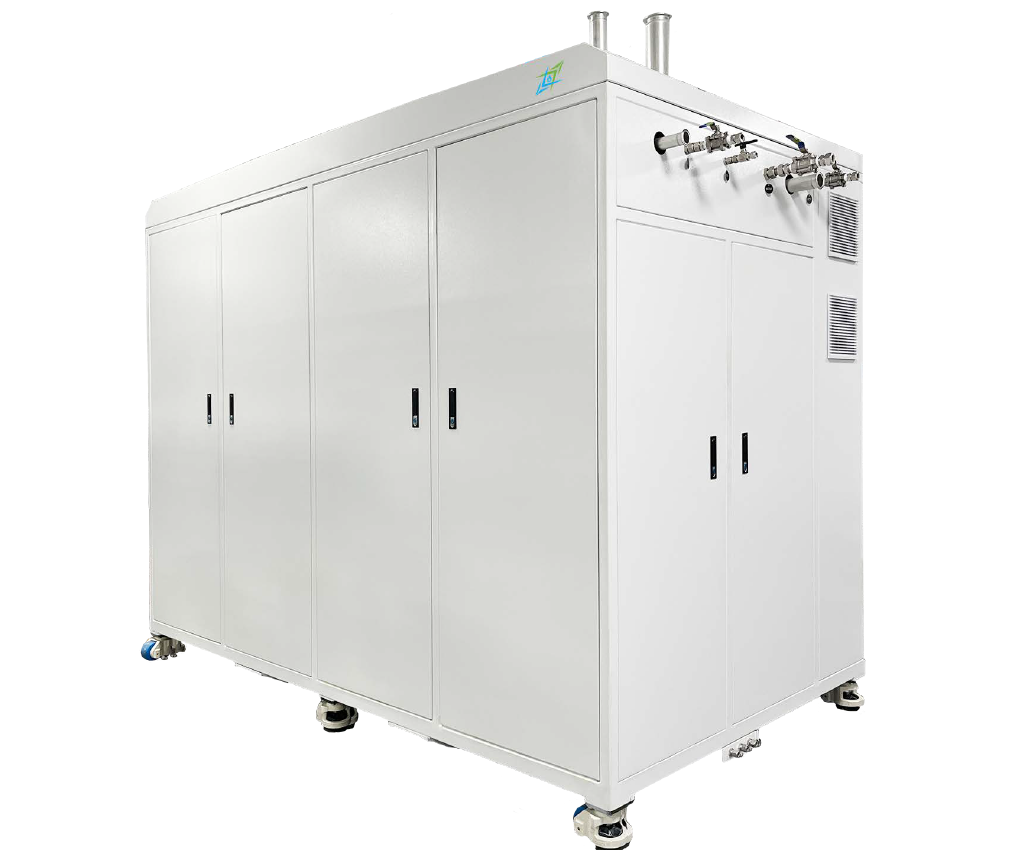

The PM80 fuel cell test station is designed for the development and research of PEM fuel cell stacks ranging from 3.75 to 75 kW. This station is capable of controlling the flow, pressure, temperature, and humidity of the anode, cathode, and cooling loops of a fuel cell stack. It simulates operational conditions and collects comprehensive data from the stack.
Anode/Cathode Flow Rate, Stoich, Temperature, Humidity and Pressure Control
Dry/Wet Gas Switching
Estop and Manual Nitrogen Purge
Rapid Heating and Humidification of The Stack
Polarization Curves and Other Functional Tests
Cell Voltage Monitoring
Intrinsic Safety & Alarming System
HMI with Data Acquisition & Analysis
24/7 Unattended Operation
Rapid Humid
Dynamic Pressure
Anode Deadend

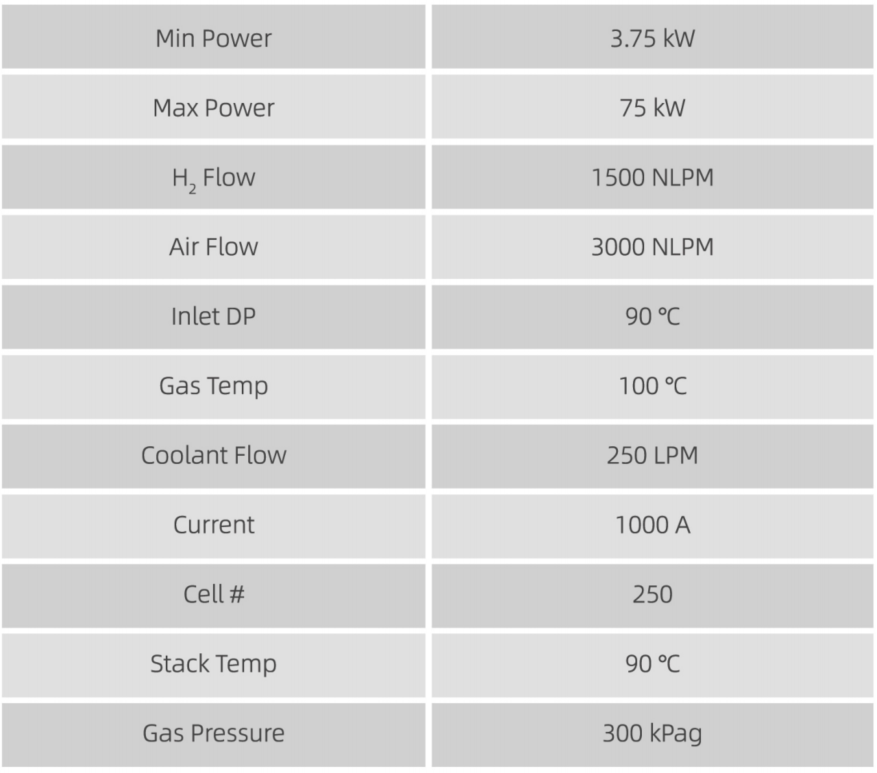

| Min P/kW | Max P/kW | H2/NLPM | Air/NLPM | Inlet DP/°C | Gas Temp/°C | Coolant/LPM | Current/A | Cell# | Stack Temp/°C | Gas Pressure /kPag | Cell Hardware | Endplate Heating | 0V Operation | Cell Reverse | EIS | HFR | Rapid Humid | Dynamic Pressure | Active Cooling | Anode Deadend | Cold Start | Water Balance |
| 3.75 | 75 | 1500 | 3000 | 90 | 100 | 250 | 1000 | 250 | 90 | 300 | O | O | O |
