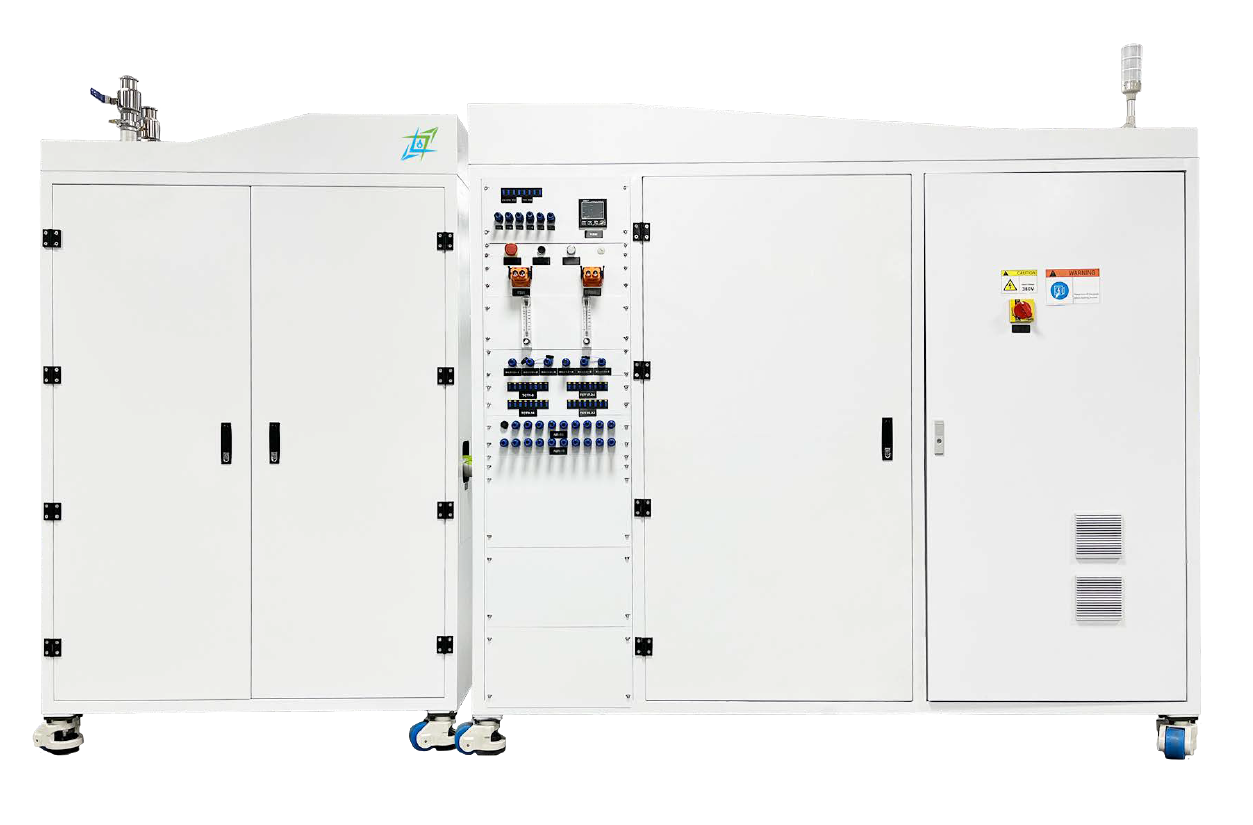

HT250 PEM Fuel Cell System Test Bench

HT250 PEM Fuel Cell System Test Bench

The HT250 fuel cell test station is designed for the development and research of 250kW PEM fuel cell system. This station is capable of controlling the flow, pressure, temperature, and humidity of the anode, cathode, and cooling loops of a fuel cell stack. It simulates operational conditions and collects comprehensive data from the stack.

View full details

Basic Functions

● Anode/Cathode Flow Rate, Stoich, Temperature, Humidity and Pressure Control
● Dry/Wet Gas Switching
● Estop and Manual Nitrogen Purge
● Rapid Heating and Humidification of The Stack
● Polarization Curves and Other Functional Tests
● Cell Voltage Monitoring
● Intrinsic Safety & Alarming System
● HMI with Data Acquisition & Analysis
● 24/7 Unattended Operation

Technical Parameters
