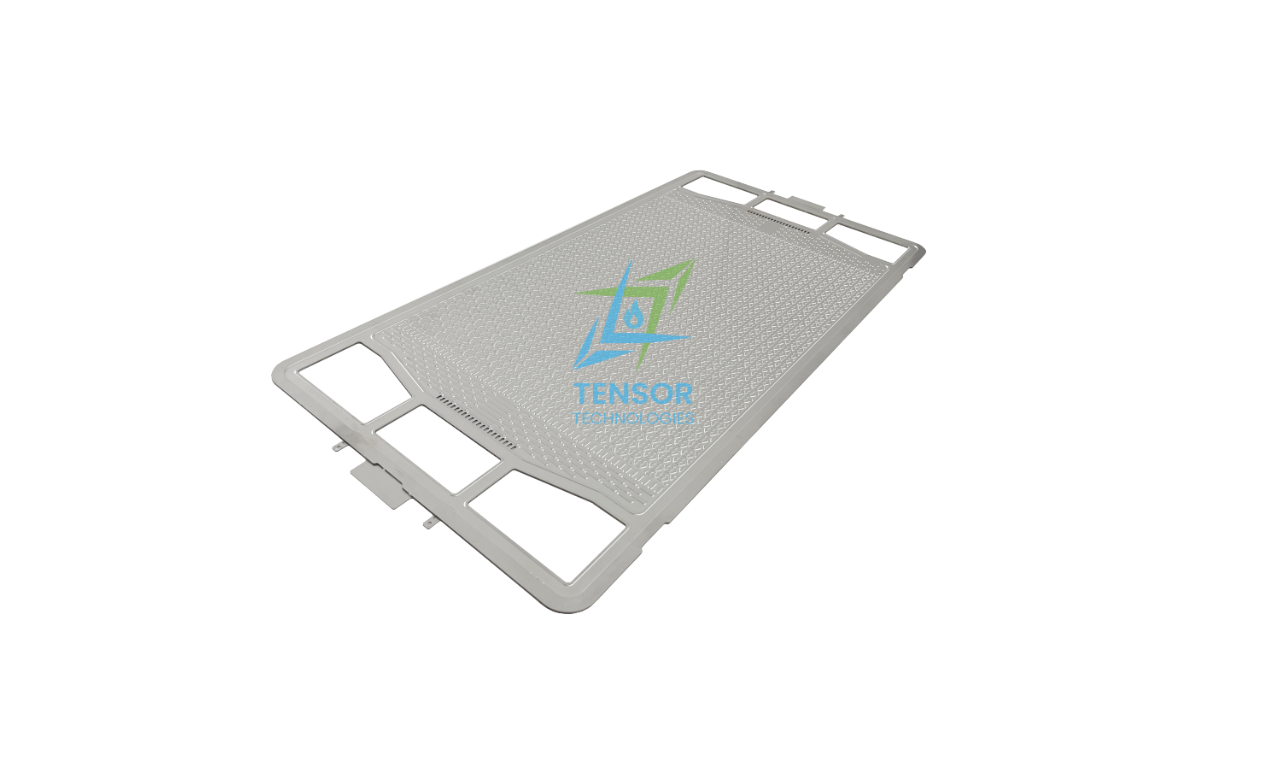

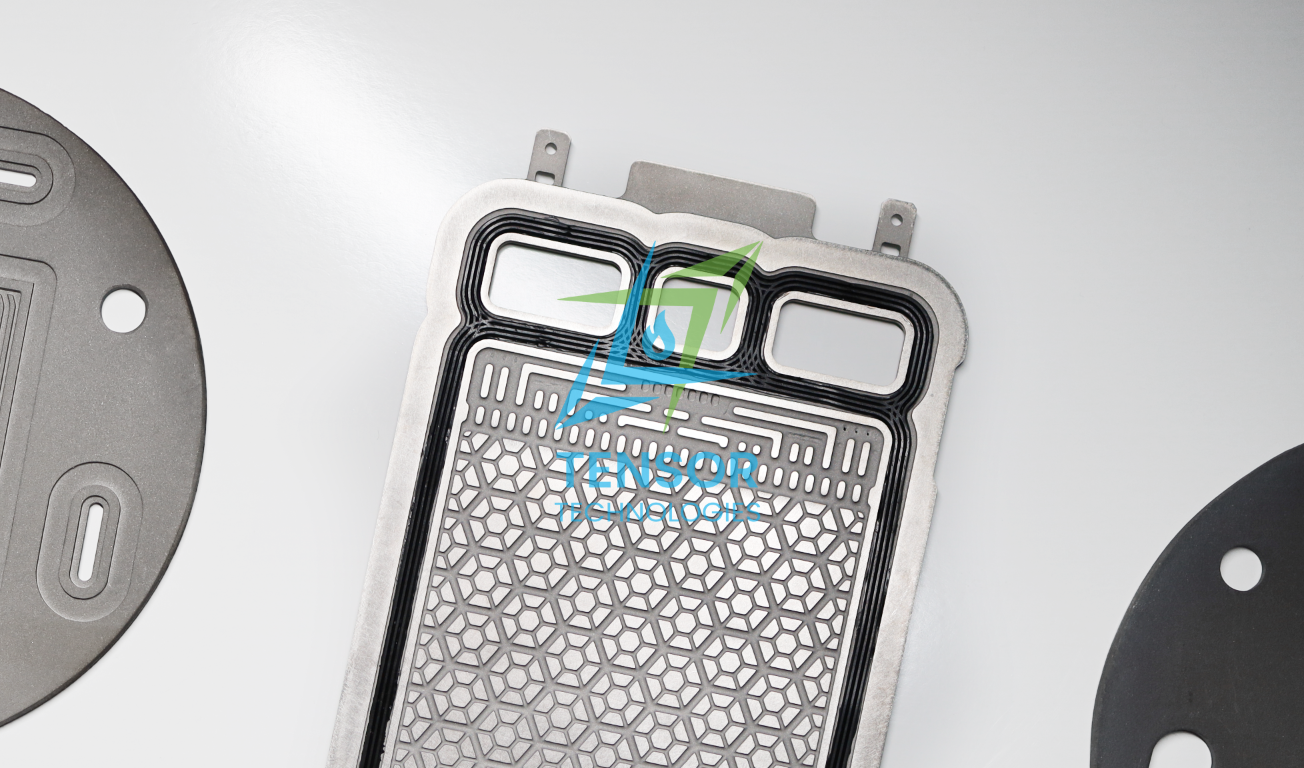

PEM Water Electrolyser Bipolar Plate for Fuel Cells

Tensor Technologies bipolar plate design has been optimized for a standardized PEM water electrolysis stack configuration with a dual channel single anode water circulation loop design, with a pressurized anode and cathode. Alternative or customized bipolar plate designs with alternative specifications can be tailored to specific customer applications.

*Customized products, please send your requirements to info@tensortechs.com

Get Free Quote

Highlights of PEM Water Electrolysis Electrolyzer Bipolar Plate

PEM electrolyzer bipolar plates are critical components used in the electrolysis process to split water into hydrogen and oxygen. These plates serve as conductive pathways, facilitating the flow of electrons and ions within the electrolyzer. Coating services for these bipolar plates are essential to enhance their durability, conductivity, and resistance to corrosion. High-quality coatings ensure efficient performance, longevity, and reduced maintenance costs of the electrolyzer. By optimizing the functionality of bipolar plates, these services contribute significantly to the overall efficiency and cost-effectiveness of hydrogen production, supporting the advancement of clean energy technologies.

Main Coating Characteristics of PEM Water Electrolyzer Bipolar Plate

● Maximum corrosion resistance
● H2 embrittlement protection
● Low contact resistance
● Efficient thermal conductivity
● Low cost per unit

Specification of PEM Water Electrolysis Electrolyzer Bipolar Plate

		Product Matrix Estimate
Parameter	Units	Loki				Baldr				Tyr				Hel
Number of Cells		25	50	75	100	25	50	75	100	25	50	75	100	25	50	75	100
Active Area	cm2	78	78	78	78	155	155	155	155	311	311	311	311	624	624	624	624
H2 Flow Rate	NLPM	41	82	122	163	82	163	245	327	163	327	490	653	327	653	980	1306
O2 Flow Rate	NLPM	20	41	61	81	41	81	122	162	81	162	243	324	162	324	487	649
Max Water Flow Rate	LPM	5	10	15	20	10	20	30	40	20	40	60	80	40.3	81	121	161
Water Consumption Rate	L/hr	1.96	3.92	5.89	7.85	3.9	7.85	11.8	15.7	7.8	15.7	23.5	31.4	15.7	31.4	47.1	62.8
Thermal Power	kWt	1.75	3.5	5.25	7	3.5	7	10.5	14	7	14	21	28	14	28	42	56
Electric Input Power	kWe	10	21	31	41	21	41	62	83	41	83	124	166	83	166	249	332
Voltage	V(DC)	45	89	134	178	45	89	134	178	45	89	134	178	45	89	134	178
Current	A(DC)	233	233	233	233	466	466	466	466	932	932	932	932	1870	1870	1870	1870

		Product Matrix Estimate
Parameter	Units	Freya				Njord				Odin
Number of Cells		25	50	75	100	25	50	75	100	25	50	75	100
Active Area	cm2	1247	1247	1247	1247	2499	2499	2499	2499	5004	5004	5004	5004
H2 Flow Rate	NLPM	653	1306	1959	2612	1306	2612	3919	5225	2612	5225	7837	10450
O2 Flow Rate	NLPM	324	649	973	1298	649	1298	1946	2595	1298	2595	3893	5190
Max Water Flow Rate	LPM	80.5	161	242	322	161	322	483	644	322	645	967	1289
Water Consumption Rate	L/hr	31.4	62.8	94.2	126	62.8	126	188	251	126	251	377	502
Thermal Power	kWt	28	56	84	112	56	112	168	224	112	224	336	448
Electric Input Power	kWe	166	332	498	664	332	664	996	1327	664	1327	1991	2655
Voltage	V(DC)	45	89	134	178	45	89	134	178	45	89	134	178
Current	A(DC)	3750	3750	3750	3750	7500	7500	7500	7500	15000	15000	15000	15000

Function of Bipolar Plate in Fuel Cell

The bipolar plate is a critical component in fuel cells, serving three key roles:

Electrical Conduction – Connects cells in series to form a stack while conducting current.
Gas Distribution – Delivers hydrogen (anode) and oxygen (cathode) via flow channels to catalyst layers.
Heat & Water Management – Helps dissipate heat and removes water byproduct to prevent flooding.

Made of graphite, metal, or composites, it must balance conductivity, corrosion resistance, and lightweight design for optimal performance.
