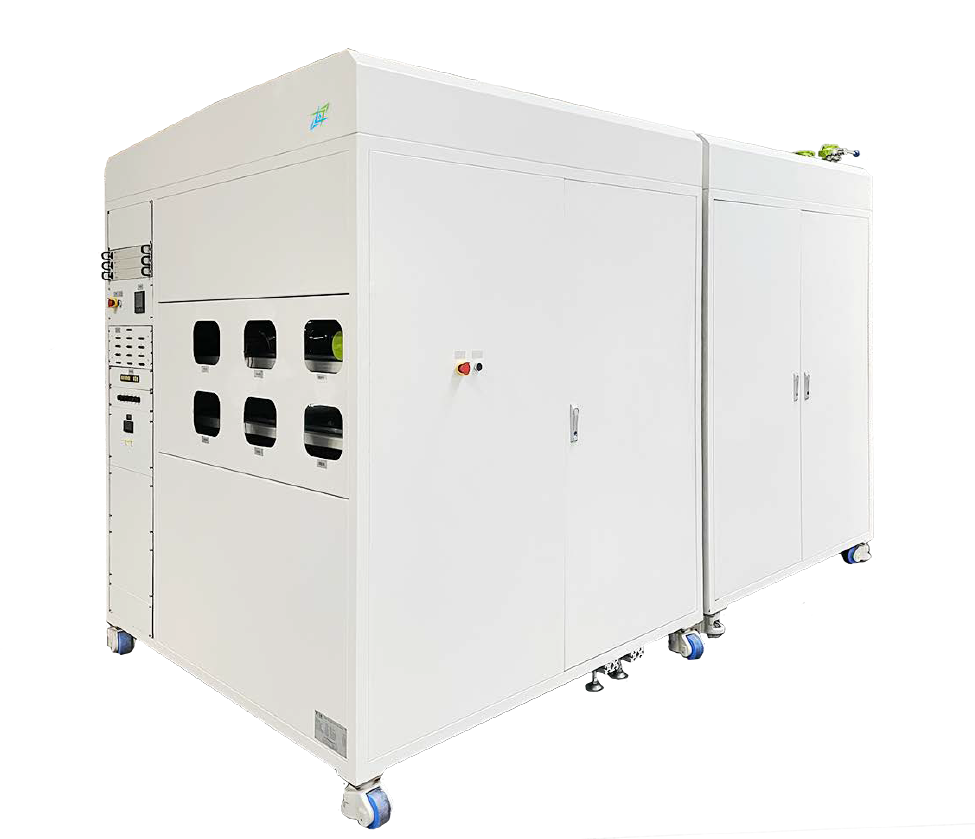

PM300 PEM Fuel Cell Stack Testing

PM300 PEM Fuel Cell Stack Testing

The PM300 fuel cell test station is designed for the development and research of PEM fuel cell stacks ranging from 15 to 300 kW. This station is capable of controlling the flow, pressure, temperature, and humidity of the anode, cathode, and cooling loops of a fuel cell stack. It simulates operational conditions and collects comprehensive data from the stack.

View full details

Basic Functions

● Anode/Cathode Flow Rate, Stoich, Temperature, Humidity and Pressure Control
● Dry/Wet Gas Switching
● Estop and Manual Nitrogen Purge
● Rapid Heating and Humidification of The Stack
● Polarization Curves and Other Functional Tests
● Cell Voltage Monitoring
● Intrinsic Safety & Alarming System
● HMI with Data Acquisition & Analysis
● 24/7 Unattended Operation

Optional Functions

●Rapid Humid
●Dynamic Pressure
●Anode Dead-end

Technical Parameters
